1. Introduction

For OEMs in industries ranging from agriculture and heavy-duty trucks to construction equipment and electric vehicles, selecting the right bevel gear is both a technical and business-critical decision. A poorly chosen gear can result in premature failures, excessive downtime, and costly warranty claims.

This buyer’s guide from Wenlio Gear, a sub-brand of PairGears, is designed to provide engineers, procurement managers, and decision-makers with a structured approach to bevel gear selection. We will cover design considerations, material choices, load analysis, precision standards, and supplier evaluation—ensuring you make informed decisions that enhance reliability and reduce total cost of ownership.

2. Key Parameters for Selecting Bevel Gears

2.1 Load Requirements

• Torque Capacity: Calculate maximum torque to prevent overload.
• Shock Loads: Agricultural machinery faces irregular shocks, requiring toughened steels.
• Continuous Duty: Trucks and buses need gears that endure tens of thousands of hours without failure.

2.2 Shaft Angle and Speed Ratio

• Standard miter gears transmit at 1:1 ratios, typically at 90°.
• Spiral bevel and hypoid gears allow higher ratios and smoother operation.
• Application dictates whether efficiency or strength is prioritized.

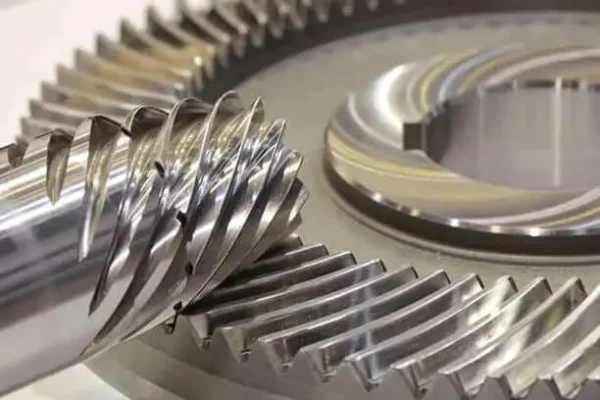

2.3 Precision Class

• International benchmarks: ISO Grade 5, AGMA 14.
• Higher precision means less backlash, quieter performance, and longer service life.
• For EVs, where motor noise is minimal, gear precision becomes critical to NVH (Noise, Vibration, Harshness).

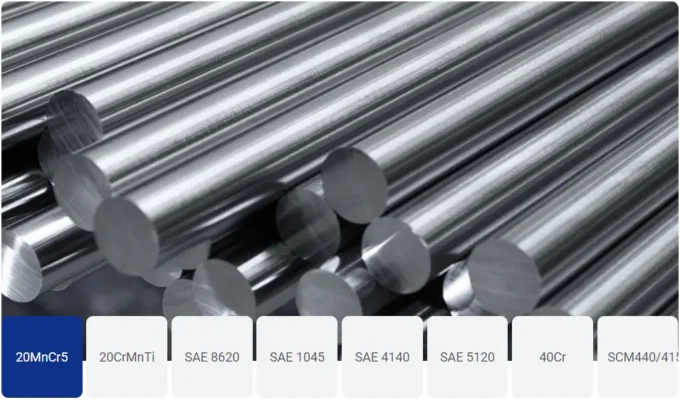

2.4 Material Selection

• Carburized Alloy Steels (e.g., 20CrMnTi, 18CrNiMo7-6): Ideal for heavy-duty trucks and tractors.
• Nitrided Steels: Lightweight, wear-resistant, used in robotics and automation.
• Forging vs Casting: Forged blanks offer higher density and fatigue resistance.

2.5 Heat Treatment and Surface Finish

• Carburizing to 58–62 HRC ensures surface hardness.
• Grinding after heat treatment ensures accurate tooth profiles.
• Polished finishes reduce friction and noise.

3. Industry-Specific Considerations

3.1 Agricultural Machinery

• Requirements: High shock resistance, long maintenance intervals.
• Common Gears: Spiral bevel gears in tractor differentials, straight bevel gears in power take-off shafts.
• Buyer Tip: Focus on surface hardness and toughness; avoid low-grade steels that chip under load.

3.2 Heavy-Duty Trucks

• Requirements: Quiet, durable hypoid gears for long-haul transport.
• Buyer Tip: Insist on AGMA 14 compliance to ensure fuel efficiency and reduced NVH.

3.3 Construction Equipment

• Requirements: High torque capacity for excavators, bulldozers.
• Buyer Tip: Ensure gears are tested for dust and mud ingress resistance.

3.4 Electric Vehicles and Robotics

• Requirements: Lightweight, compact, precision bevel gears.
• Buyer Tip: Choose suppliers with CNC grinding capability to guarantee micro-level tolerances.

4. Common Mistakes OEM Buyers Make

• Focusing Only on Price: Cheap gears may save upfront cost but often lead to failures, warranty claims, and damaged brand reputation.
• Ignoring Heat Treatment: Without proper carburizing or nitriding, gears wear out quickly in heavy-duty environments.
• Overlooking Lead Times and MOQ: Large suppliers may demand high MOQs or long lead times. Wenlio Gear offers flexible MOQ and fast delivery to balance cost and supply chain agility.
• Neglecting Supplier Audits: Always assess your supplier’s production facilities, inspection systems, and track record.

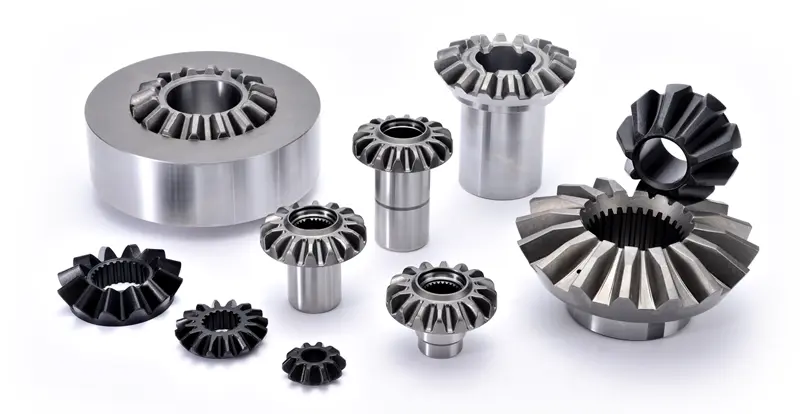

5. Wenlio Gear as Your OEM Partner

As the bevel gear sub-brand of PairGears, Wenlio Gear provides:

• End-to-End Manufacturing: Forging, CNC machining, heat treatment, inspection.
• Precision: DIN 6 and AGMA 14 compliance.
• Flexibility: OEM customization, low MOQ, fast lead times.
• Global Reach: Customers across Europe, North America, South America, and Asia.
• Reliability: Assembly pass rate >98%, defect rate <400 ppm.

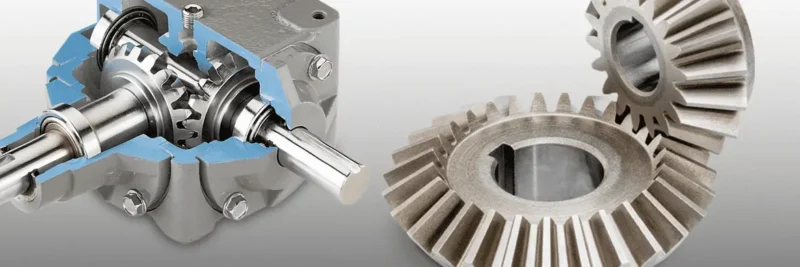

6. Case Study: Agricultural Gearbox OEM

A leading agricultural machinery OEM faced frequent gearbox failures during peak harvest seasons. After switching to Wenlio Gear’s carburized spiral bevel gears, failure rates dropped by 40%, downtime decreased significantly, and overall cost of ownership was reduced.

Key Results:

• Improved gear life by 2.5x.
• Reduced warranty claims by 35%.
• Boosted end-user satisfaction and brand reputation.

7. Conclusion

Choosing the right bevel gear is not just about technical specifications—it’s about ensuring reliability, reducing lifecycle costs, and protecting your brand reputation.

Wenlio Gear, backed by PairGears, combines precision engineering, flexible OEM services, and global support to deliver bevel gear solutions tailored to your exact needs.

Looking for a reliable OEM partner? Contact Wenlio Gear today to discuss your project.
