Helical gears for smooth power transmission between parallel shafts.
Custom helical gears for parallel-shaft gearboxes. Material & heat-treat options, inspection reports, and lead-time choices after drawing review.

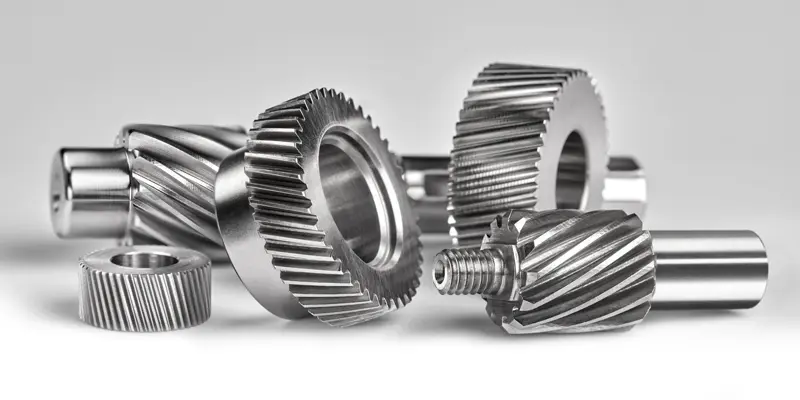

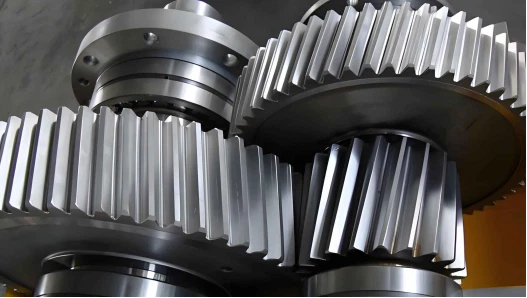

Helical gears are cylindrical gears characterized by teeth cut at an angle, known as the helix angle. This design typically facilitates power transmission between parallel shafts.
Unlike spur gears, helical gears engage more gradually due to their angled teeth, generally improving the smoothness and quietness of operation. This attribute is often application-dependent.
The angled teeth of helical gears lead to a higher contact ratio in many designs, resulting in smoother and quieter meshing compared to other gear types.
When properly supported and lubricated, helical gears are suitable for gearbox designs requiring higher speeds and heavier loads, optimizing performance and durability.
It’s important to note that helical gears generate axial thrust. Proper consideration must be given to bearing design and housing stiffness to manage these forces effectively.

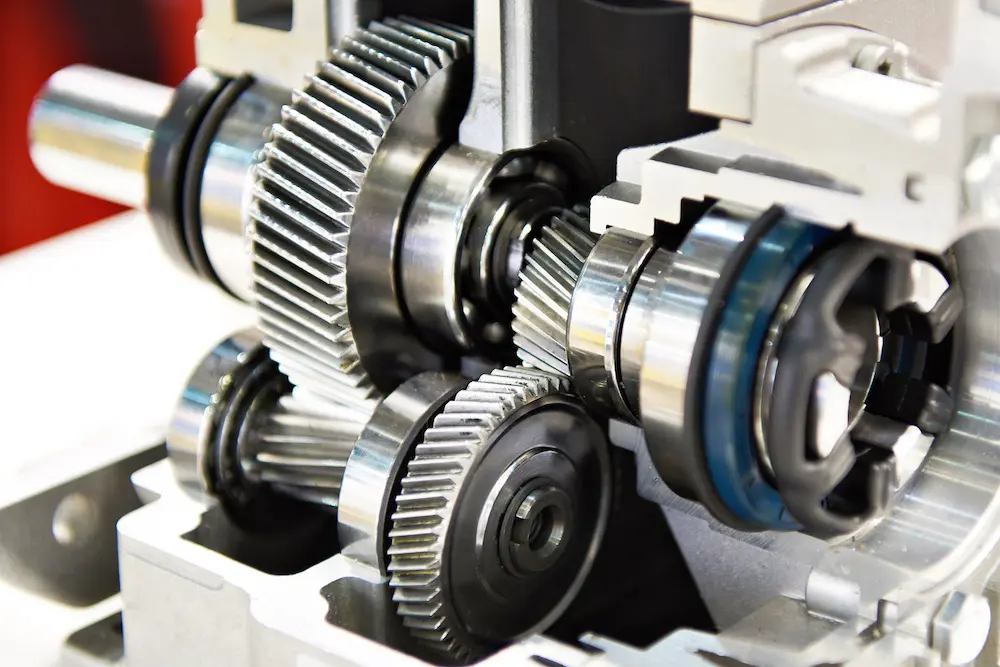

Helical gears are integral to various industries, from heavy machinery to precision instruments. Their design makes them ideal for:
We offer comprehensive customization to meet your precise engineering requirements. When requesting a quote, please provide the following details:
Define gear type (helical), module/DP, pressure angle, tooth count, and face width for optimal performance.
Specify helix angle and helix hand (LH/RH), rotation direction, and target backlash to achieve precise engagement.
Detail bore/hub specifications including keyway, spline, or thread requirements, along with datums and runout limits.
Provide material and heat treatment requirements, or duty cycle and lubrication information, to ensure durability.
Indicate the required quality level and inspection deliverables, such as a comprehensive report upon request.
Our streamlined manufacturing process ensures precision and quality in every helical gear. The final route is meticulously planned based on your drawing specifications, chosen materials, and accuracy targets.

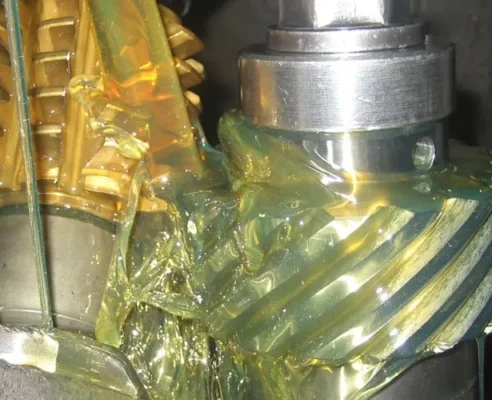

Helical Gear Production Process：Drawing review → Blank machining (datums) → Tooth cutting (e.g., hobbing/shaping, as applicable) → Deburr/chamfer → Heat treatment (as required) → Finishing (grind/hone, as required) → Final inspection → Rust protection → Packing & shipment
(One line: Final route depends on drawing, material, and accuracy/NVH targets.)
Learn more

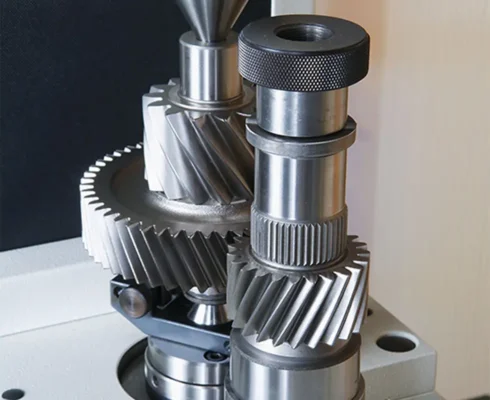

At Wenlio, quality is paramount. Our rigorous inspection processes ensure every helical gear meets the highest standards:

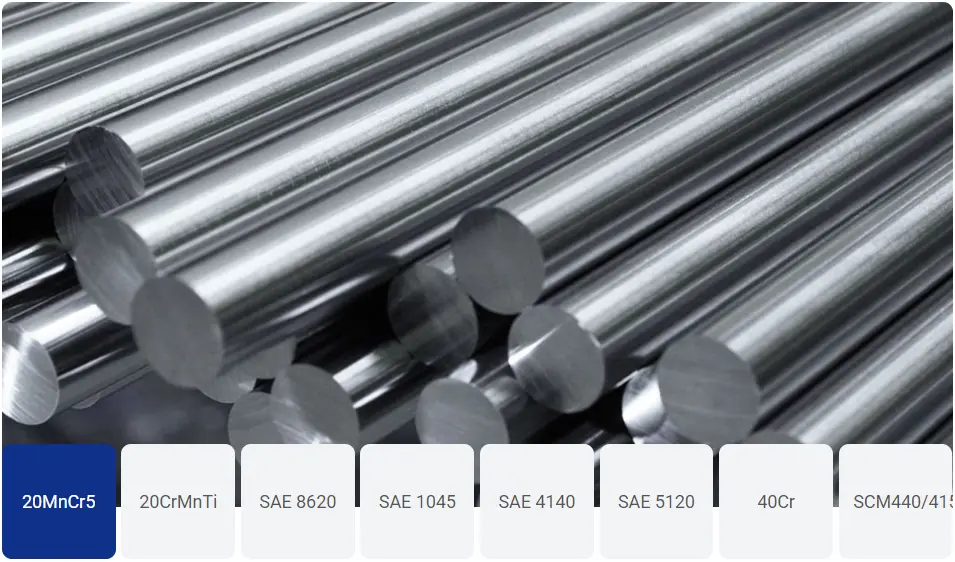

Choosing the right material and heat treatment is critical for helical gear performance. We offer a range of options to suit diverse application demands, ensuring optimal hardness, wear resistance, and durability.
Leveraging cutting-edge technology for superior gear accuracy and performance.
Tailored designs to meet your specific application needs and engineering challenges.
Adherence to strict ISO standards and comprehensive inspection protocols.
Efficient production schedules ensuring on-time delivery without compromising quality.
