Custom Hypoid Bevel Gear Manufacturer
Custom hypoid gear sets for high-torque, compact right-angle power transmission with shaft offset.
What Are Hypoid Bevel Gears?

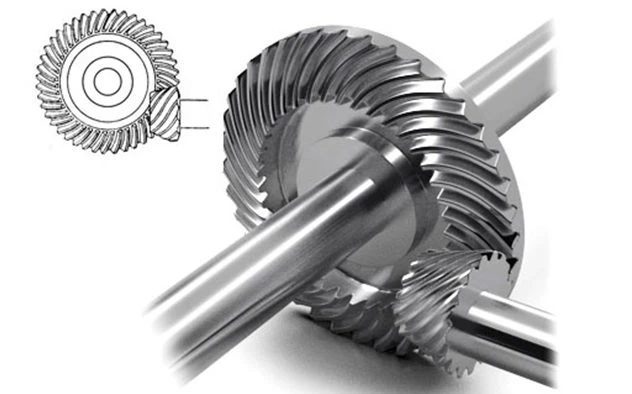

A hypoid gear set is a specialized type of bevel gear where the pinion and gear axes are offset and do not intersect. This distinct geometry, differing from standard spiral bevel gears, introduces a combination of rolling and sliding motion during meshing.
This unique configuration allows for greater design flexibility in compact drive systems, enabling engineers to achieve significant shaft offset, which is crucial for many modern vehicle and machinery designs.
Key Advantages of Hypoid Gears
Compact Packaging
The shaft offset typically lowers driveline height in axle applications, optimizing space and allowing for more compact designs in various machinery.
Enhanced Strength

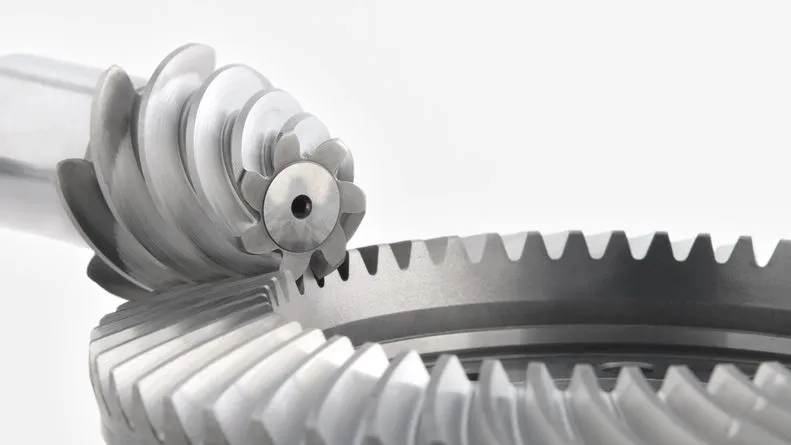

Generally, the offset geometry enables a larger pinion diameter and higher contact ratio in many designs, increasing torque capacity and durability, depending on specifications.

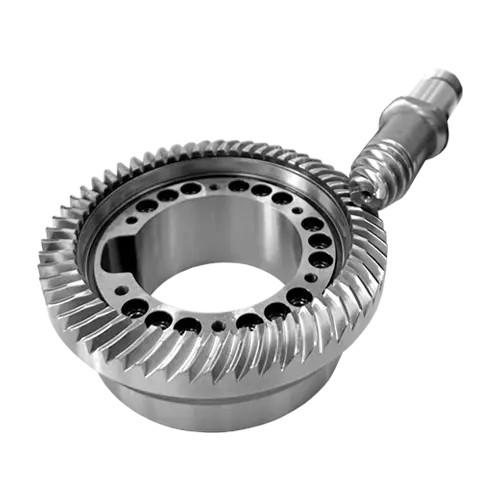

Smooth Operation
Hypoid gears are commonly used where stable torque transfer and effective noise, vibration, and harshness (NVH) control are critical, enhancing overall system refinement.
Typical Applications
Hypoid bevel gears are essential components in demanding applications requiring high torque and compact right-angle power transmission.
Automotive Final Drives
Widely used in automotive and heavy-duty final drives, differentials, and axle drives due to their ability to handle significant loads and provide packaging benefits.
Compact Right-Angle Gearboxes

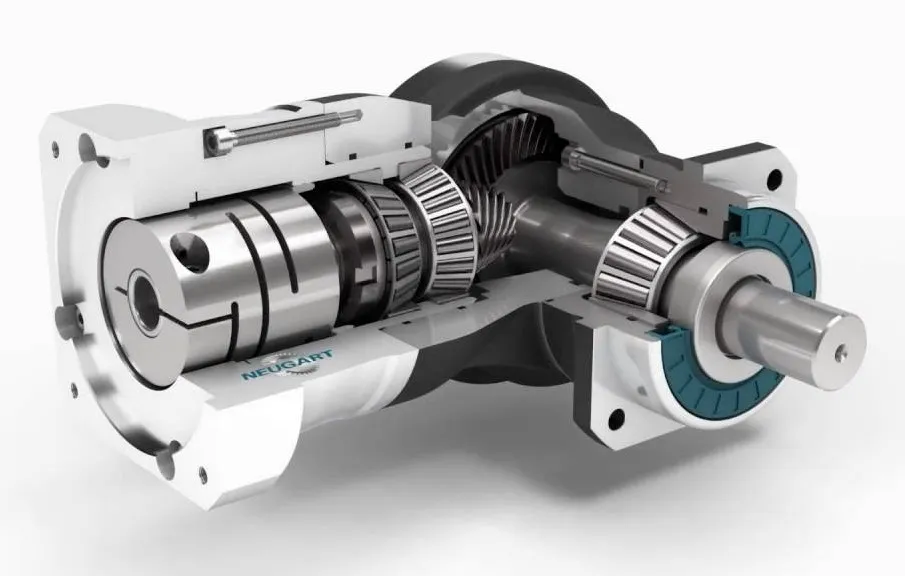

Ideal for industrial machinery and specialized equipment where an offset layout is necessary, offering efficient power transfer in constrained spaces.
Our Custom Gear Production Process
From initial design review to final shipment, our streamlined process ensures precision and quality in every custom spiral bevel gear set.

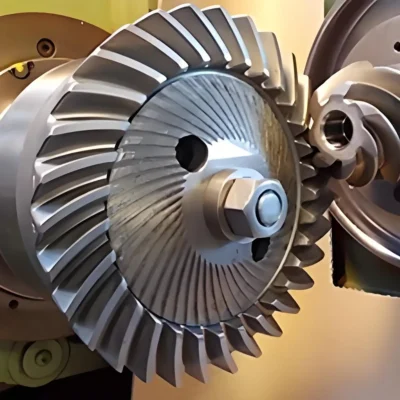

Spiral Bevel Gear Production Process๏ผDrawing & gear-set review โ Blank machining (datums) โ Spiral bevel cutting/generating โ Measuring โ Heat treatment (as required) โ Grinding or Lapping (as required) โ Testing โ Final inspection โ Rust protection โ Packing & shipment
The final manufacturing route is precisely determined by the drawing specifications, chosen materials, and critical accuracy/NVH (Noise, Vibration, Harshness) targets for your application.
Learn more
Material and Heat Treatment Options
Our Expertise and Commitment
With decades of experience in precision gear manufacturing, our team combines engineering prowess with state-of-the-art technology to deliver superior hypoid bevel gears.
Advanced Engineering
Our engineers utilize cutting-edge design software and simulation tools to optimize gear geometry for your specific application requirements.
State-of-the-Art Production
We leverage advanced CNC machining and precise finishing techniques to produce gears with exceptional accuracy and consistency.
Rigorous Testing
Every gear set undergoes comprehensive testing, including contact pattern verification, runout checks, and noise analysis, to ensure peak performance.
