Precision Bevel Gears
We make bevel gears for many industries, including agricultural machinery, bottling lines, construction equipment, food service equipment, and lawn & garden tools.
Sizes & Specs
-
from 0.5 in to 25 in diameter
-
Diametral pitch: 96 to 2
-
Metric module: 0.25 to 12

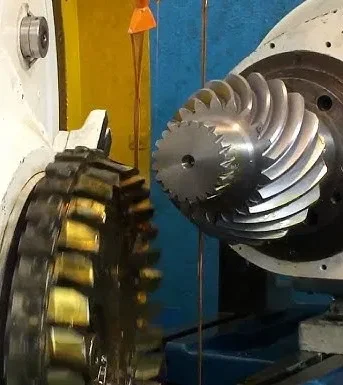

Processes
-
Hobbing and milling
-
Finishing options: gear grinding
-
Heat treatment: carburizing, flame hardening, induction, or nitriding

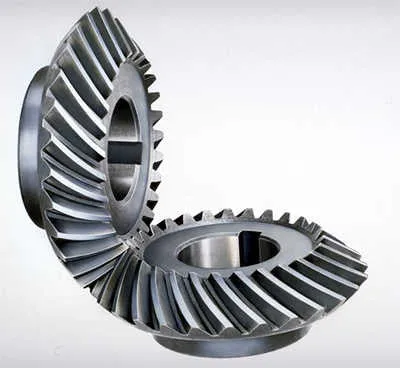

What is Spiral Bevel Gears?
Spiral bevel gears have curved, oblique teeth arranged in a spiral. This design ensures more gradual and quieter engagement than straight-tooth gears.
What are the key features and advantages of Spiral Bevel Gears?

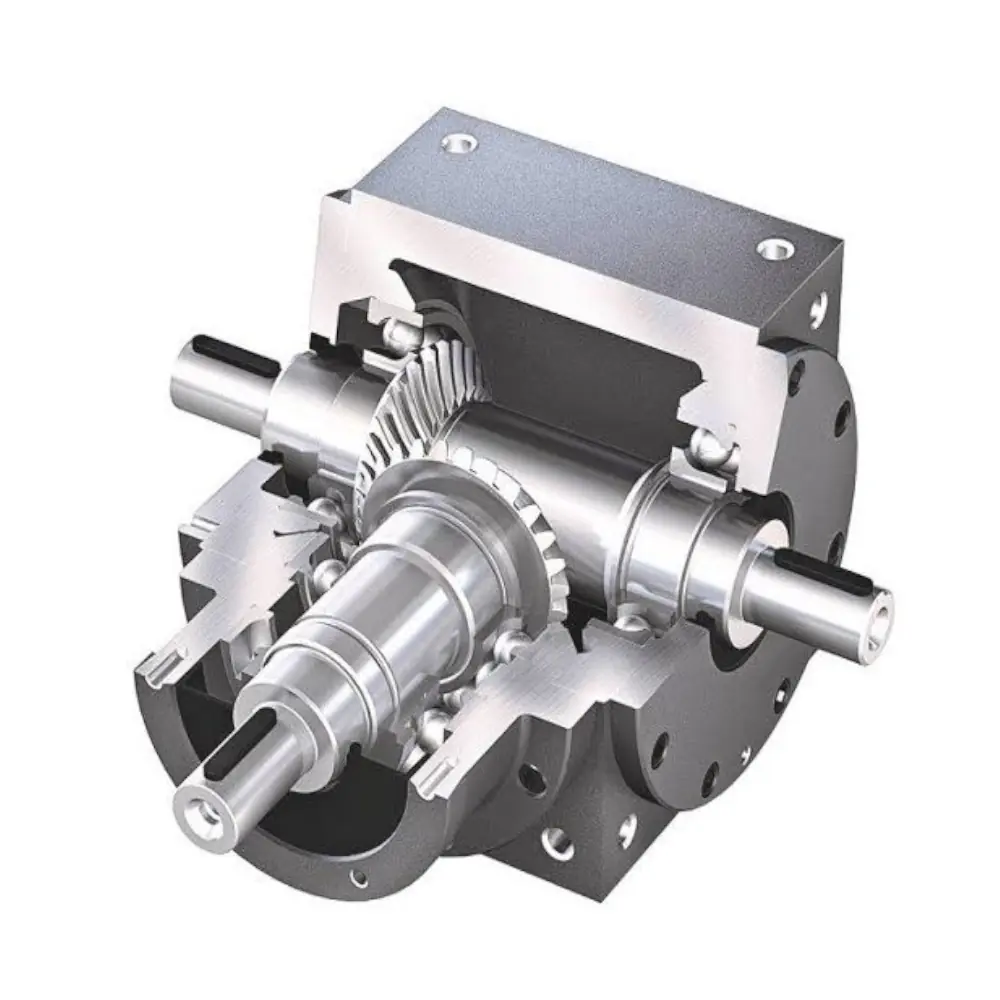

They offer smooth, quiet operation at high speeds and can handle heavy loads. Their spiral design also allows for a larger contact area between teeth.
What are some common uses and applications for Spiral Bevel Gears?

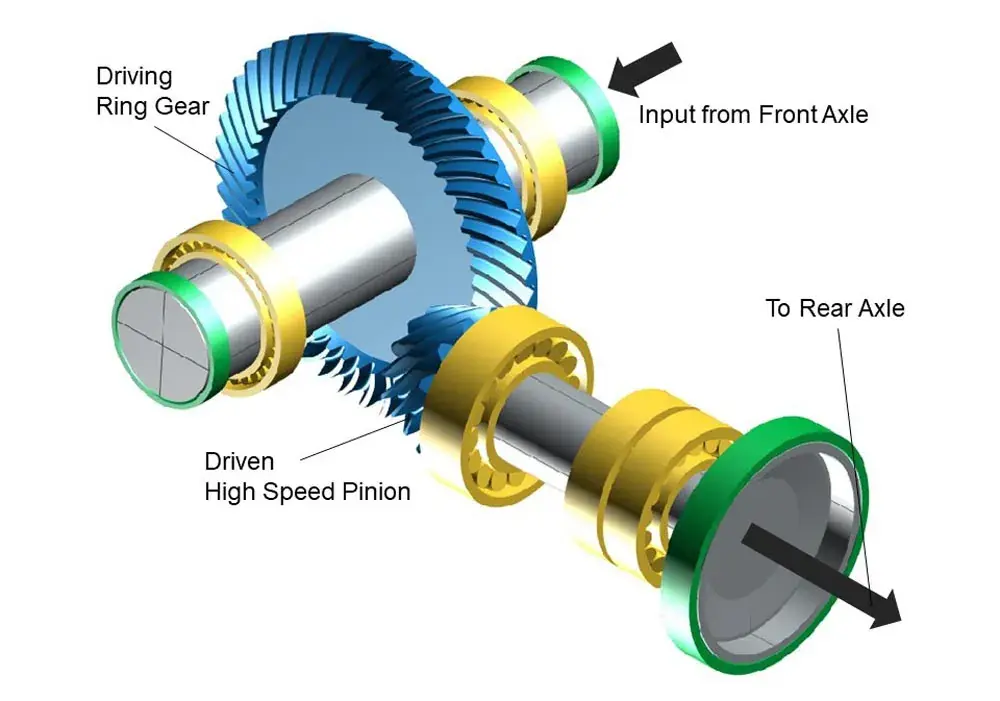

They are used in high-speed, high-torque applications like automotive differentials, machine tools, and helicopter transmissions to change the axis of rotation.
How to Customize Bevel Gear Ratios?
Bevel gears transfer motion between intersecting shafts—most commonly at 90°. By selecting an appropriate gear ratio, you can tune output speed and torque for your application. Our series offers standard ratios of 1:1 (miter), 1:1.5, 1:2, 1:3, and 1:4.
Gears within the same series are fully compatible and may be paired interchangeably to achieve the required ratio. For best results, always select gears with the same module, pressure angle, tooth form, and mounting distance, and use matched pairs from the same series.

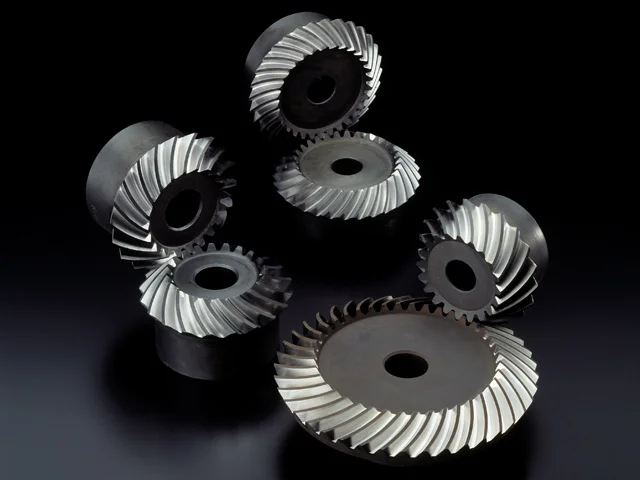

Whats is spiral Bevel Gears
Spiral bevel gears are conical gears with curved, spiral teeth that mesh gradually, delivering higher contact ratios, smoother motion, and lower noise than straight bevel gears—especially at high speeds. They transmit power between intersecting shafts, typically at 90°, and support higher torque due to improved load sharing along the tooth. Common ratios range from 1:1 (miter) to about 5:1. For accuracy and durability, they’re usually case-hardened, ground, and supplied as matched pairs with controlled mounting distance and backlash. Typical applications include automotive differentials, aerospace and marine drives, industrial gearboxes, and precision machinery where efficiency, quietness, and reliability are critical.
Straight Bevel Gears
Straight teeth
Spiral Bevel Gears
Curved (spiral) teeth
Straight vs. Spiral Bevel Gears
Quick comparison for selection and application guidance.
| Dimension | Straight Bevel | Spiral Bevel |
|---|---|---|
| Tooth form | Straight teeth | Curved (spiral) teeth |
| Shaft angle | Typically 90° (customizable) | Typically 90° (customizable) |
| Noise / Vibration | Higher, especially at high speed | Lower; smoother operation |
| Load capacity & life | Moderate | Higher |
| Machining difficulty / Cost | Lower; simpler to manufacture | Higher; more expensive |
| Alignment & assembly | More sensitive to coaxiality/center distance | More forgiving assembly tolerances |
| Typical applications | Agricultural machinery, tools, low-to-medium speed gearboxes | Automotive differentials, high-speed machinery |
Wenlio Spival Bevel Gear
Manufacturing company since 2004

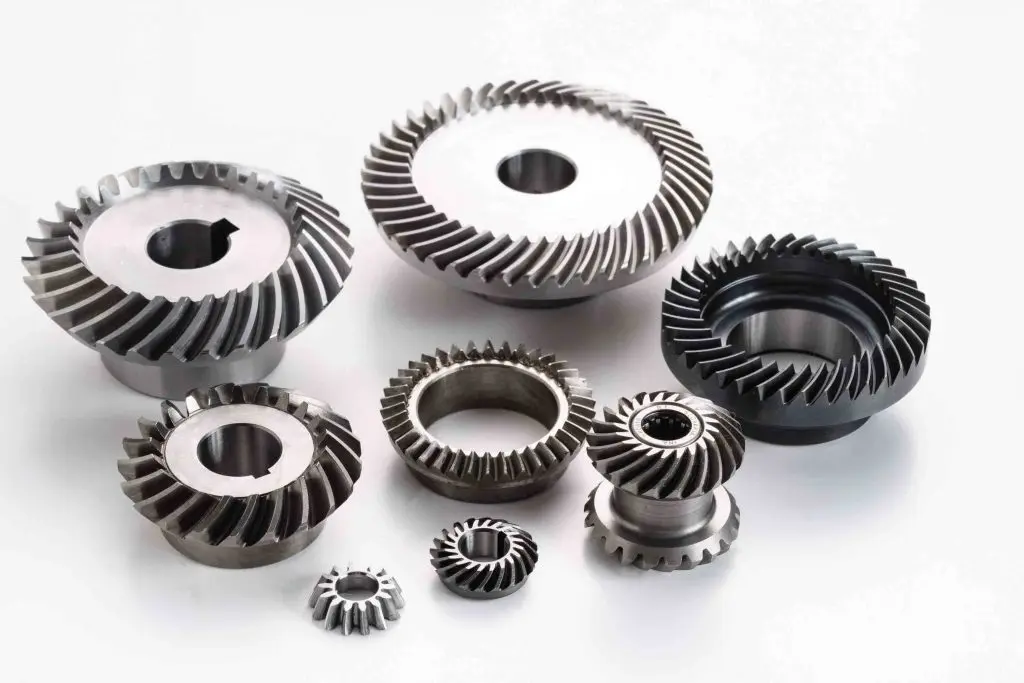

Custom Bevel Gears
-
Wenlio Gear’s bevel and miter gears turn power between shafts that meet at 90°.
-
Ratios: Miter gears are 1:1. Bevel gears range from 1.5:1 to 6:1.
-
Tooth design: Usually 20° pressure angle. A long/short addendum is used to avoid undercut on small tooth counts.
-
Matching rules (Miters): They only work together when tooth count, pitch, and pressure angle are the same. You can use more than two in one system (e.g., a differential).
-
Matching rules (Bevels): Sold as matched gear–pinion pairs. Do not mix different pitch, pressure angle, or ratio. When one is worn, replace the whole pair, especially for low ratios.
RUSH-READY CUSTOM GEARS—SLAS AVAILABLE
72-HOUR QUOTES. ACCELERATED PRODUCTION WINDOWS.
From single prototypes to large-volume production
Wenlio Gear provides a full range of manufacturing services for gears, gear components, and assemblies. With skilled technicians, proven know-how, and a fully equipped facility, we deliver precise, custom work for your gear projects.
NEED CUSTOM GEARS—FAST?
SLA Packages (Lead Time & Pricing)
| Tier | Lead Time | Price Uplift |
|---|---|---|
| Standard | 40–45 days | Base price (0%) |
| Expedited | 25–30 days | +12–18% |
| Rush | 10–15 days | +25–40% |
| Note: Values are illustrative. Calibrate using Wenlio Gear’s actual capacity and historical data (material categories, size limits, heat-treat capability, yield). | ||
Quality Control
Prior to every shipment, we conduct the following tests and provide complete quality reports for these gears.
Bubble Drawing
Prepared by Wenlio Gear
Material Certification Report
Prepared by Wenlio Gear
Dimension Measurement Report
Prepared by Wenlio Gear
Accuracy Measurement Report
Prepared by Wenlio Gear
Accuracy Measurement Report
Prepared by Wenlio Gear
Heat Treatment Testing Report
Prepared by Wenlio Gear
