Custom Spur Gear Manufacturer for Industrial Applications

  • Over 22 years of experience in custom gear manufacturing
  • Direct factory pricing with full process control
  • Engineering support from drawing review to mass production
  • Flexible MOQ for prototyping and small batches
  • Stable supply for long-term OEM projects
Contact Wenlio Gear

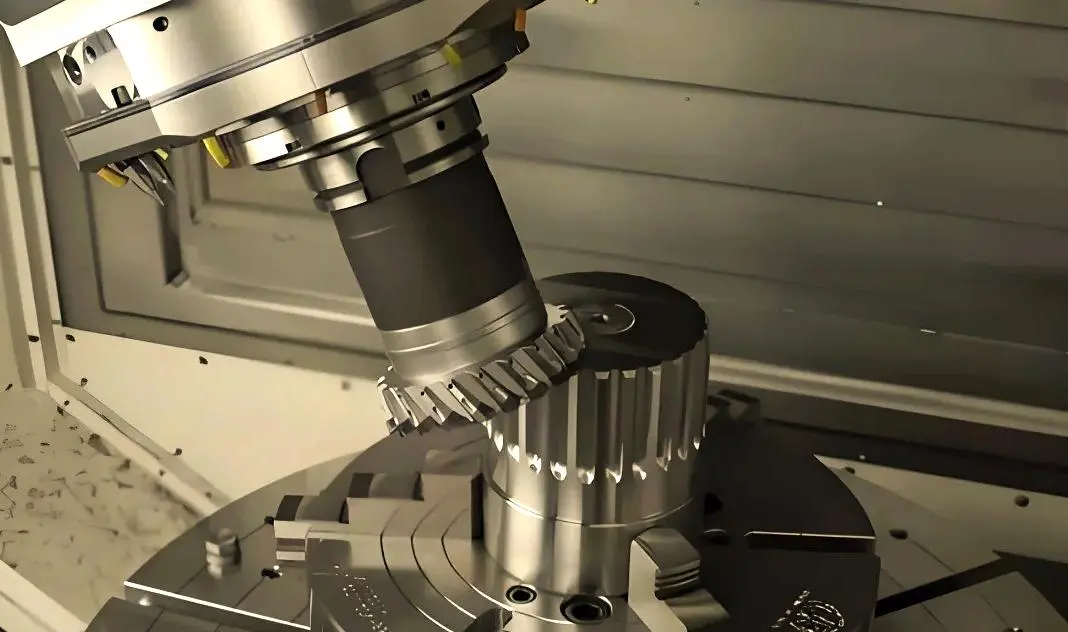

Gear machining and manufacturing

Gear Machining and Manufacturing

Manufacturing company since 2004

Understanding Spur Gears: The Backbone of Industrial Power Transmission

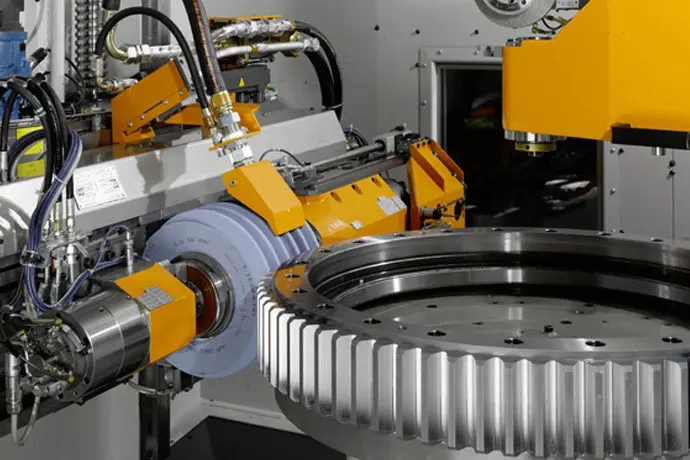

Gear grinding

Wenlio Spur Gear Grinding

Manufacturing company since 2004

Essential Technical Parameters

  • Pitch circle: The theoretical circle where gears mesh and transfer motion
  • Diametral pitch: Number of teeth per inch of pitch diameter
  • Module: Metric measurement of tooth size and spacing
  • Pressure angle: Angle determining load distribution and gear strength
  • Addendum & dedendum: Tooth height above and below pitch circle

    • Common pressure angles include 14.5° for smooth, quiet operation and 20° for enhanced tooth strength and higher load capacity, each influencing performance characteristics and noise levels.

    YOUR CUSTOM GEARS—FASTER FROM QUOTE TO SHIP

Common Spur Gear Manufacturing Process

For spur gears, hobbing is the most common and cost-effective method for external gears in medium to large quantities.
For internal gears or shoulder-limited designs, shaping or broaching is required.
If high accuracy or low noise is required, shaving or grinding will be applied after cutting.

Disc-Type Gear Milling Cutter

Gear Milling

Advantages:

  • Low equipment requirement
  • Fast changeover, suitable for prototypes and samples

Disadvantages:

  • Low accuracy (typically ≤ DIN 9–10)
  • Low efficiency, not suitable for mass production

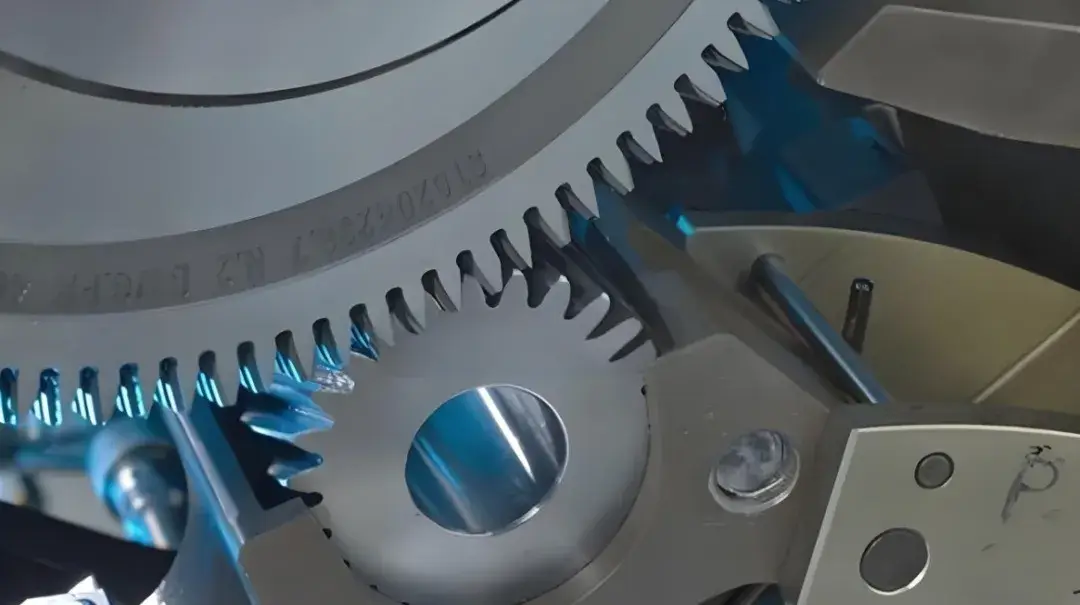

Gear shaving

Gear Shaving

Advantages:

  • Significantly improves noise performance and meshing quality
  • Lower cost compared to gear grinding

Disadvantages:

  • Only applicable before heat treatment
  • Not suitable for hardened gears

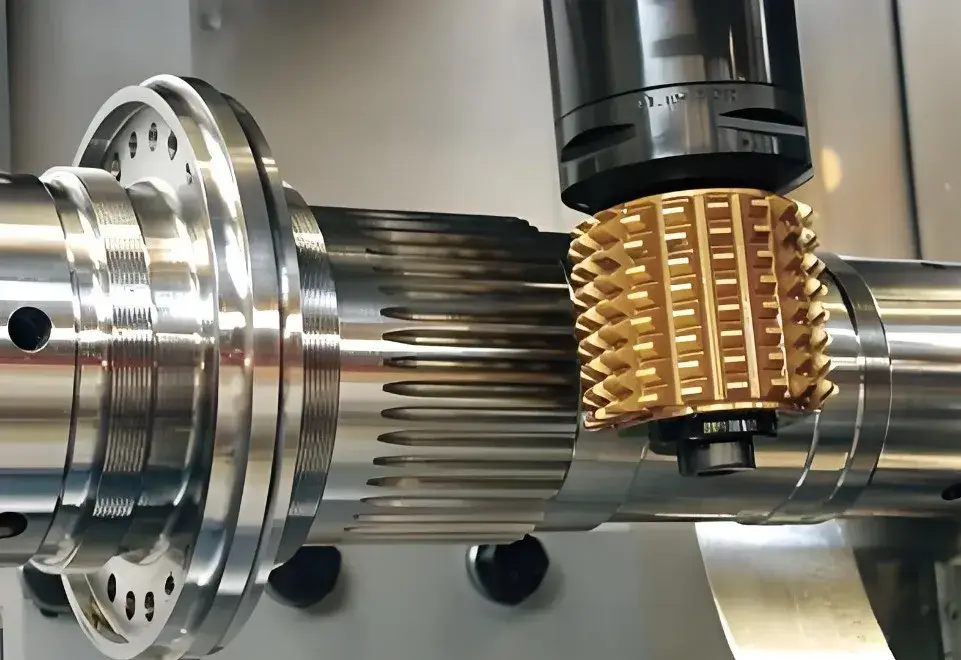

Gear Hobbing

CNC Gear Hobbing

Advantages:

  • Stable accuracy (DIN 6–8)
  • Applicable to nearly 90% of external spur gears

Disadvantages:

  • Not suitable for internal gears
  • Limited for gears with shoulder or step structures

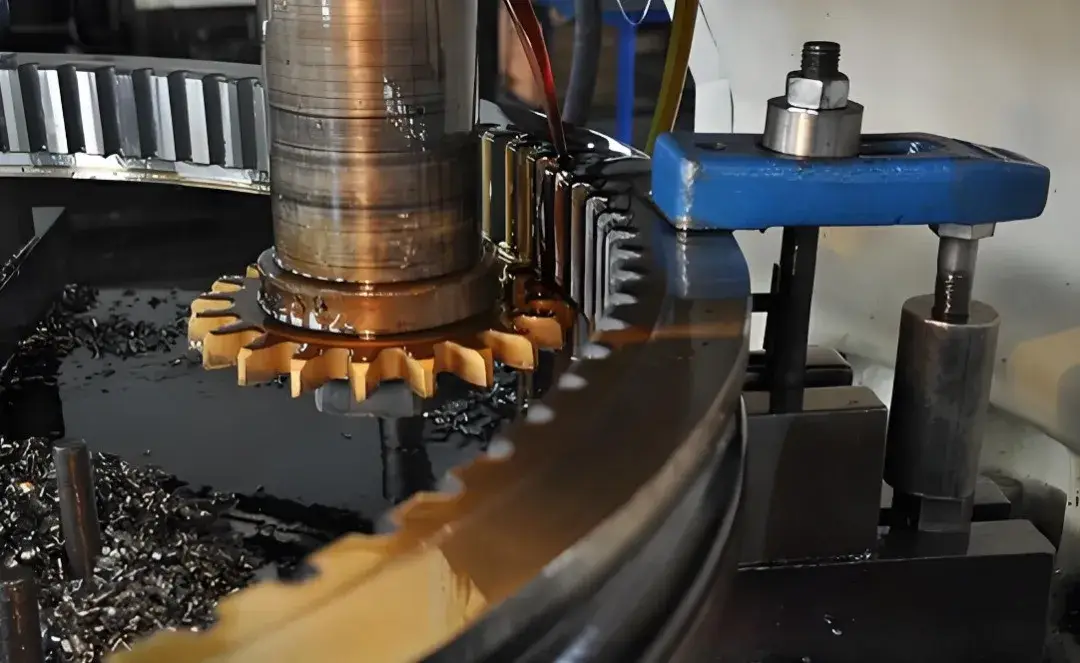

CNC gear shaping

CNC Gear Shaping

Advantages:

  • Suitable for internal gears
  • Capable of cutting gears close to shoulders or steps

Disadvantages:

  • Lower efficiency compared to hobbing
  • Relatively shorter tool life

RUSH-READY CUSTOM GEARS—SLAS AVAILABLE

72-HOUR QUOTES. ACCELERATED PRODUCTION WINDOWS.

Wenlio Gear Product Overview

From single prototypes to large-volume production

Wenlio Gear provides a full range of manufacturing services for gears, gear components, and assemblies. With skilled technicians, proven know-how, and a fully equipped facility, we deliver precise, custom work for your gear projects.

NEED CUSTOM GEARS—FAST?





SLA Packages (Lead Time & Pricing)

Tier Lead Time Price Uplift
Standard 40–45 days Base price (0%)
Expedited 25–30 days +12–18%
Rush 10–15 days +25–40%
Note: Values are illustrative. Calibrate using Wenlio Gear’s actual capacity and historical data (material categories, size limits, heat-treat capability, yield).

Custom Spur Gear Specifications

  • Module: 0.5 – 20
  • Diametral Pitch: Available upon request
  • Material Options: 20CrMnTi / 42CrMo / SAE 1045 / Stainless Steel / Alloy Steel
  • Heat Treatment: Carburizing, Induction Hardening, Nitriding, Quenching & Tempering
  • Accuracy Grade: ISO 6–9 / AGMA 8–12 / DIN standards
  • Max Outer Diameter: 2000 mm
  • Surface Finish: Ground / Hobbing / Shaping

👉 All spur gears are produced strictly according to customer drawings or confirmed specifications.

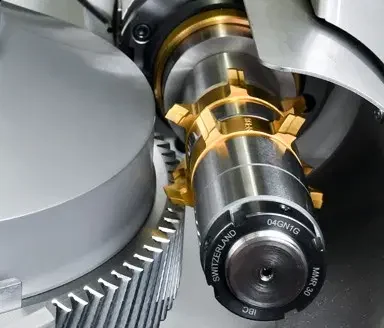

gear hobbing

Wenlio Gear Hobbing Process

Image Box text

REQUEST A QUOTE

To request a quote, please send email to sales@wenlio.com. If you have a more urgent request, please call us at +86 18257981010 for immediate assistance.
