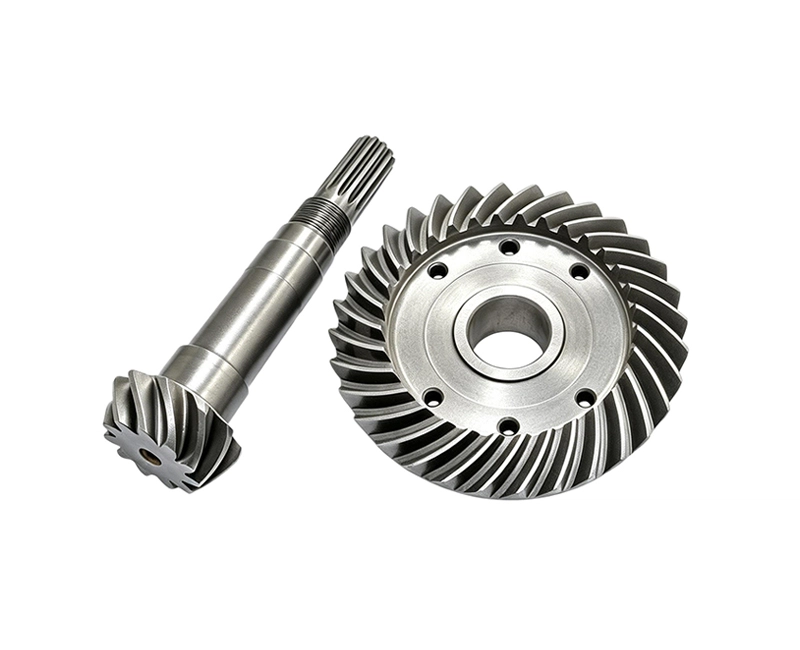

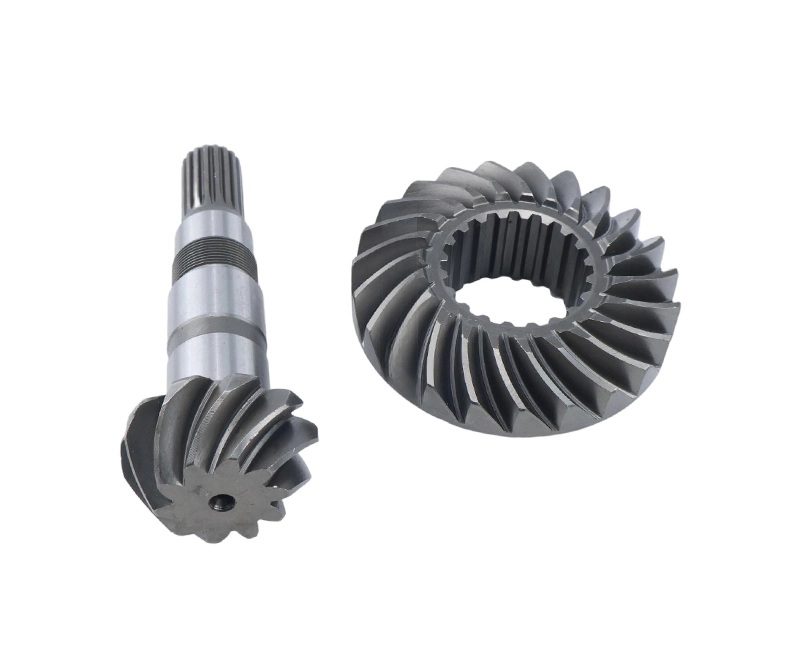

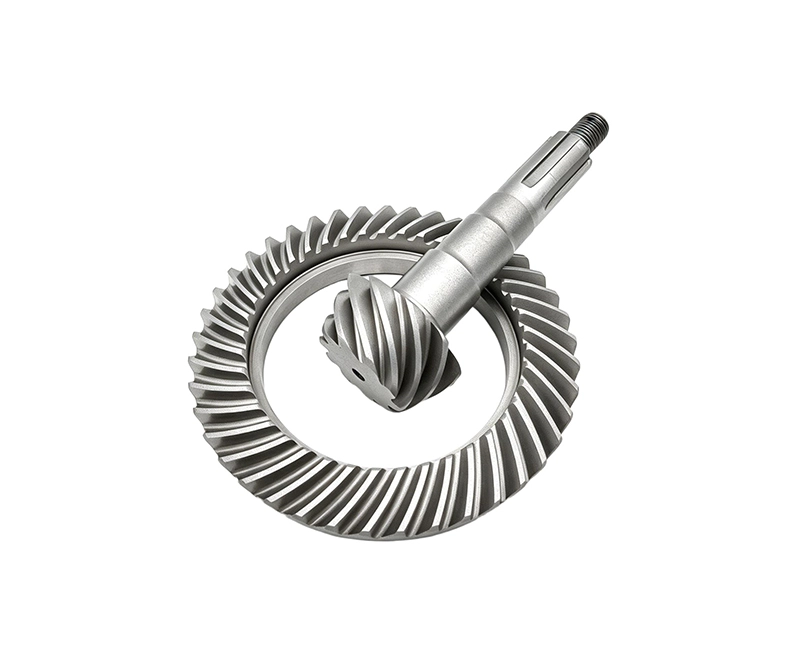

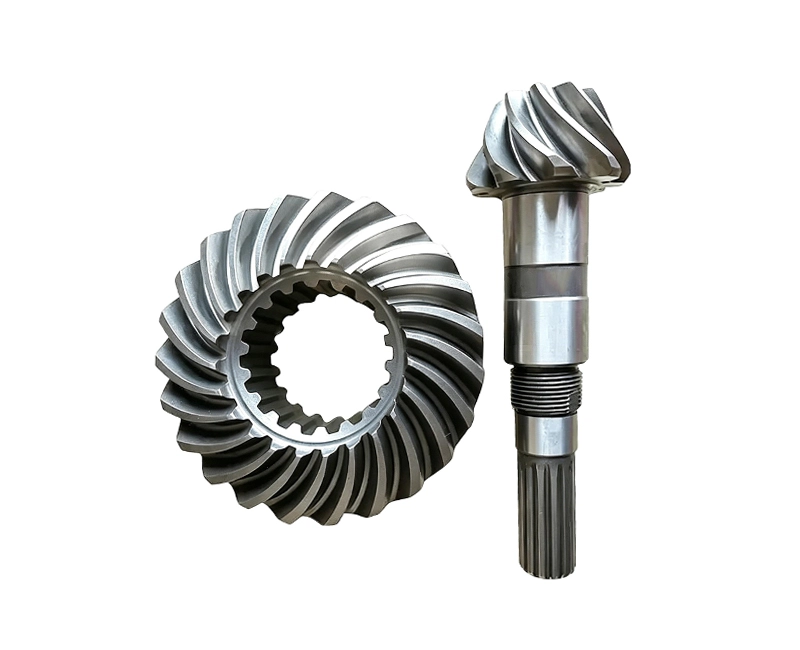

Crown Bevel Gears for Agricultural Tractors
Crown bevel gears for tractor right-angle drives where space is tight. Share mating pinion details and duty cycle, then request a quote๏ผ
Description
Specifications
| Item | Specification | Tipical | Notes |
|---|---|---|---|
| Gear Type | Crown Bevel Gear | โ | โ |
| Module (m) | 2 โ 6 | 4 | As drawing |
| Pressure Angle | 20 – 25ยฐ | 20ยฐ | As drawing |
| Precision Grade | ISO 1328 8โ9 / AGMA 8โ9 | ISO 9 | As drawing |
| Materials | 20CrMnTi / 20CrNiMo / 40Cr / 42CrMo / 45# / Others | 20CrMnTi | As drawing |
| Heat Treatment | Carburized & Quenched / High-frequency Quenched / Nitrided | Carburized | As drawing |
| Hardness | Carburized & Quenched:Tooth HRC 58โ62
High-frequency Quenched:HRC 45โ55 Nitrided:Tooth HV 650โ1300 |
Carburized & Quenched:Tooth HRC 58โ62
High-frequency Quenched:HRC 48โ52 Nitrided:Tooth HV 700โ1100 |
As drawing |
| Surface Finish | Black Oxide Coating / Electroplating / Phosphate Coating / Passivation | Black Oxide Coating / Electroplating | As drawing |
| Process | Milling / Forging / Powder Metallurgy | Milling / Forging | As drawing |
Video Preview
Crown bevel gears are used in compact right-angle transmission layouts where gear form, mating conditions, and installation space need careful review. This short video gives buyers a quick visual look at the face-style gear structure, drawing features, and typical application movement before technical discussion.
For custom crown bevel gear manufacturing, Wenlio reviews drawings, samples, tooth geometry, material, heat treatment, tolerance, surface finish, and inspection requirements. Share your drawing, sample, application details, and estimated quantity to receive a suitable custom gear quotation.
Request a QuoteDownload
Spiral Bevel Gear Machining Service
milling
Milling delivers flexible, CNC-controlled cutting for prototypes and small batches.Ideal for thin-plate parts and non-standard bevel gears where tooling needs to stay agile.
forging
Forging forms dense blanks with improved grain flow for high-load bevel gear applications.
Best for robust gear blanks that require strength before precision machining.
Powder metallurgy
Powder Metallurgy makes near-net-shape gears with consistent repeatability at scale.
Great for small-module or complex geometries, cutting material waste and machining time.
Quality Control
Prior to every shipment, we conduct the following tests and provide complete quality reports for these gears.:
1. Bubble drawing
2. Dimension measurement report
3. Material certification report
4. Heat treatment testing report
5. Accuracy measurement report
Bubble Drawing
Material Certification Report
Dimension Measurement Report
Accuracy Measurement Report
Accuracy Measurement Report
Heat Treatment Testing Report
Packaging
Step 1 โ Anti-rust: We wrap each gear with VCI anti-corrosion paper / bag to protect it from rust during shipping.
Step 2 โ Inner protection: The wrapped parts are placed properly to avoid scratches and impact.
Step 3 โ Carton packing: Then we pack them into strong export cartons (logo printing is available).
Step 4 โ Crate & pallet: Cartons are loaded into a reinforced plywood crate with partitions, and fixed on a pallet.
Step 5 โ Secure & label: The crate is sealed, strapped, and labeled, ready for sea/air shipment.
We can also provide custom printed color boxes and logo customization (carton, color box, crate marking, labels).
Note: Please ensure the logo/design is authorized by you; if it involves any third-party brand, we will need written authorization to avoid IP risks.
FAQ
What is a crown gear in bevel gearing?
A crown gear (also called a face gear) is a bevel-gear form with a 90-degree pitch cone angle and teeth projecting at right angles to the face.
What should we send to quote a crown gear for tractors?
Mating pinion data, ratio, shaft angle, face width, bore interface, load/speed, lubrication, and quantity. Housing constraints help confirm the right tooth geometry and fit.
Do you support prototypes and low-volume orders before mass production?
Yes. We support prototyping and small-batch runs to validate fit, meshing, and assembly performance before scaling up. MOQ depends on gear design and tooling needs, and we will suggest a cost-effective trial quantity.
Can you quote from a sample part?
Yes. A sample is workable, but mating pinion information improves accuracy. Photos of the assembly and mounting datums also help reduce fit issues.
What inspection reports and certificates can you provide?
Upon request, we can provide a Certificate of Conformance, material mill certificates, dimensional inspection reports, and other verification documents based on your acceptance requirements and order type.
What is the lead time for custom bevel gears?
Typical lead time depends on design complexity, tooling, and heat-treatment schedule. As a reference, prototypes are often 25โ40 days, and production orders are commonly 20โ40 days. We will confirm a schedule after drawing review.
How do you handle packaging, shipping, and export documents?
We use export-ready packaging with rust protection and secure cartons or wooden cases as needed. We can ship by air, courier, or sea, and provide standard export documents such as packing list, commercial invoice, and other paperwork required by your import process.
