What Is a Spiral Bevel Gear?

1.Introduction

Wenlio Gear is a precision gear manufacturer focusing on bevel gears. We design and produce custom spiral bevel gears and other bevel gear sets.We serves five main fields:
– Agricultural machinery (tractors, harvesters, forage machines)
– Heavy-duty truck
– Construction equipment (loaders, bulldozers, cranes)
– Electric vehicle (EV axle and drives)
– Industrial automation

This article gives you a practical overview of spiral bevel gears—what they are, how they work, how they compare with other bevel gears, and how to choose them in real projects.

2. What is a spiral bevel gear?

Imagine two shafts that cross at a right angle, like an “L” shape. You want to send power around that corner – from one shaft to the other.

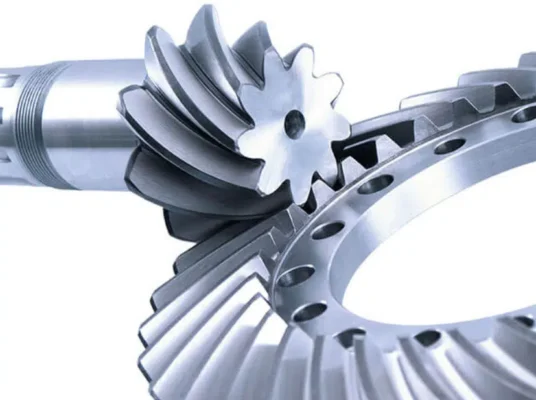

A spiral bevel gear is the gear pair that makes this possible:

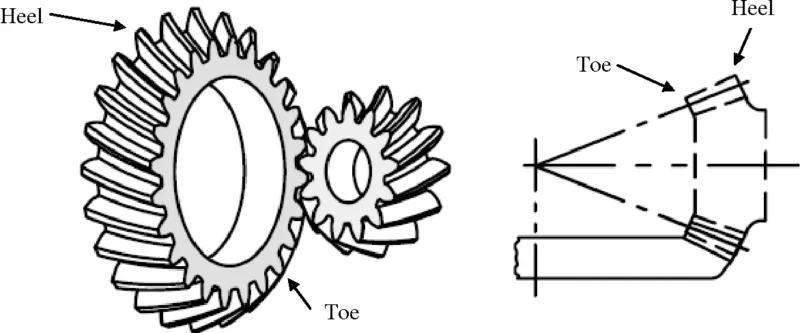

– The teeth are cut on a cone, not a cylinder
– The teeth are curved (spiral), not straight
– They work in pairs: a small pinion and a larger gear

Because the teeth are curved and meet gradually, spiral bevel gears:
– Run smoother than straight bevel gears
– Are quieter at speed
– Can carry more load in a compact space

You will find spiral bevel gears inside tractor and truck axles, right-angle gearboxes in farm machines, some EV axles and industrial gearboxes.

3. Where do you see spiral bevel gears in real life?

Here is a simple overview of where spiral bevel gears are used and what they actually do there:

Application field	Example machine / part	What the spiral bevel gear does
Agricultural machinery	Tractor axle, PTO gearbox	Turns engine power 90° to drive wheels or implements
Heavy-duty truck	Rear drive axle	Sends power from driveshaft to wheels at a right angle
Construction equipment	Loader / bulldozer axle, swing drive	Provides slow, strong turning under heavy load
Electric vehicle (EV)	E-axle or compact EV drive	Turns motor output into wheel drive in a small package
Industrial automation	Robot joints, AGV drive, angle gearbox	Gives compact right-angle motion in machines and robots

Even if you never see them directly, spiral bevel gears are quietly working in the background, helping heavy machines move, steer and work safely.

4. Why choose spiral bevel instead of straight bevel?

Straight bevel gears also change direction at 90°, but their teeth are straight.

Simple comparison:
– Straight bevel – simpler and cheaper, suitable for lower speed and lighter work
– Spiral bevel – smoother and stronger, better for machines that run faster or carry heavy loads

Point to compare	Straight bevel gear	Spiral bevel gear
Tooth shape	Straight, like simple steps	Curved / spiral, like a twisted staircase
Running feeling	Can feel harsher at higher speed	Smoother and more gradual engagement
Noise	Usually louder at higher speed	Usually quieter
Load capacity	Suitable for medium loads	Better for higher loads in the same space
Typical use	Simple gearboxes, low–medium speed	Axles, heavy machines, higher-speed right-angle drives

5. How Wenlio Gear helps with spiral bevel gear projects

You don’t need to be a gear expert to work with Wenlio Gear.
Most customers simply tell us:
– What machine it is (tractor, truck, loader, EV…)
– How big the power and torque are
– How much space is available
– What kind of lifetime and noise level they expect

As a custom gear supplier, Wenlio Gear then:
(1) Suggests a gear concept (size, ratio, type of bevel gear)
(2) Designs the teeth for smooth, reliable running
(3) Manufactures samples for test and validation
(4) Moves to stable series production once everything is confirmed

We can also supply matching straight bevel gears, helical gears and gear shafts so the whole drivetrain is designed to work well together.

6. When should you consider spiral bevel gears?

You don’t have to know every formula. As a simple rule of thumb, spiral bevel gears are a good choice when:
– The shafts cross at or near 90°
– Space is limited but torque is high
– Your machine runs at medium or higher speeds
– You want smoother running and lower noise than simple bevel gears

If you are not sure, just share your basic data with us. We can help you decide if spiral bevel, straight bevel, hypoid or another solution is the best fit.

7. FAQ – Quick Answers About Spiral Bevel Gears

Q1: What is the difference between a spiral bevel gear and a straight bevel gear?

A: Both change direction at about 90°, but a straight bevel gear has straight teeth, while a spiral bevel gear has curved teeth. Curved teeth enter and leave mesh more gradually, so spiral bevel gears usually run smoother, quieter and can handle higher loads in the same space.

Q2: Are spiral bevel gears used in normal cars and trucks?

A: Yes. Many truck and off-road axles use spiral bevel or hypoid gear sets in the final drive. Some light vehicles also use bevel or hypoid gears in differentials and transfer cases, even though you never see the gears directly.

Q3: When should I consider spiral bevel vs. hypoid gears?

A: Spiral bevel gears are good when the shafts cross exactly (or almost) at 90° and you want a strong, efficient and relatively simple solution. Hypoid gears are used when the shafts do not intersect and you need very high torque in a compact axle, but they are more sensitive to lubrication and manufacturing accuracy.

Q4: What information should I send Wenlio Gear for a spiral bevel gear project?

A: Start with the basics: what machine it is, required torque and speed, how long it should last, how much space is available, and any noise or efficiency targets. Even a simple sketch or 3D model helps. Our engineers can then recommend whether spiral bevel, straight bevel, hypoid or another solution makes the most sense.

8. Ready to talk about your project?

Spiral bevel gears are hidden inside many machines, but they make a big difference in how strong, smooth and reliable the drive feels.
If you are working on a tractor axle, truck axle, construction machine, EV drive or automation project and need a trusted partner for bevel gears, Wenlio Gear is ready to help.
The easiest next step is to send your project information through the Contact Us form on the Wenlio Gear website. Our team will get back to you with simple, practical suggestions.
