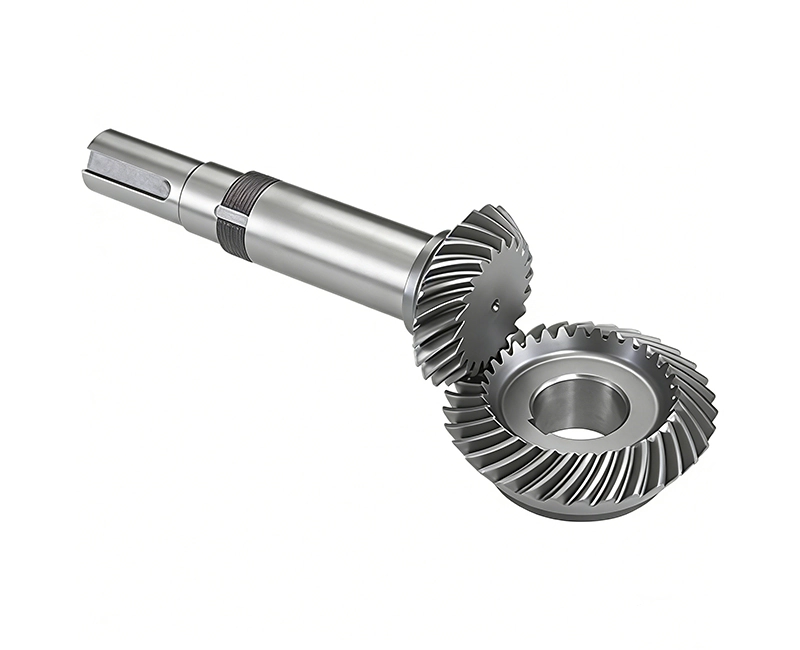

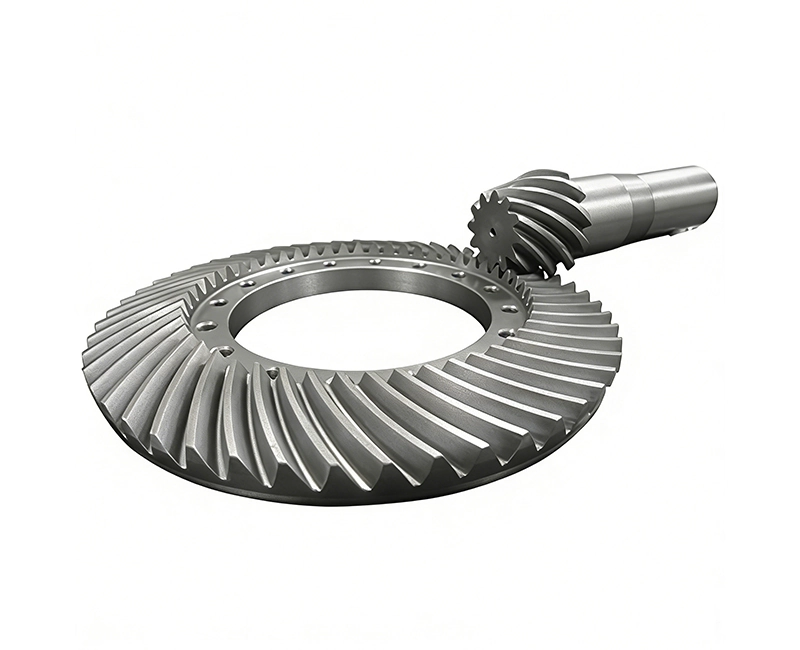

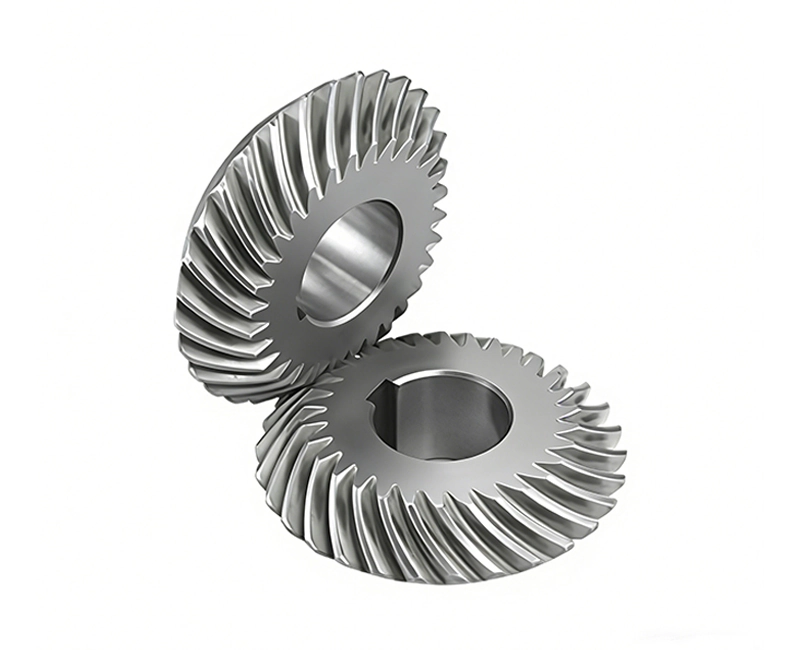

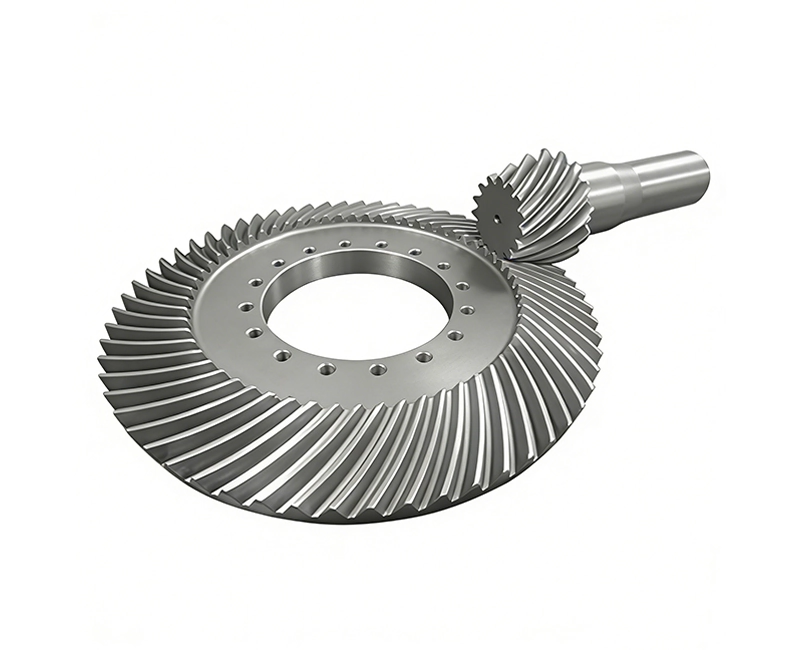

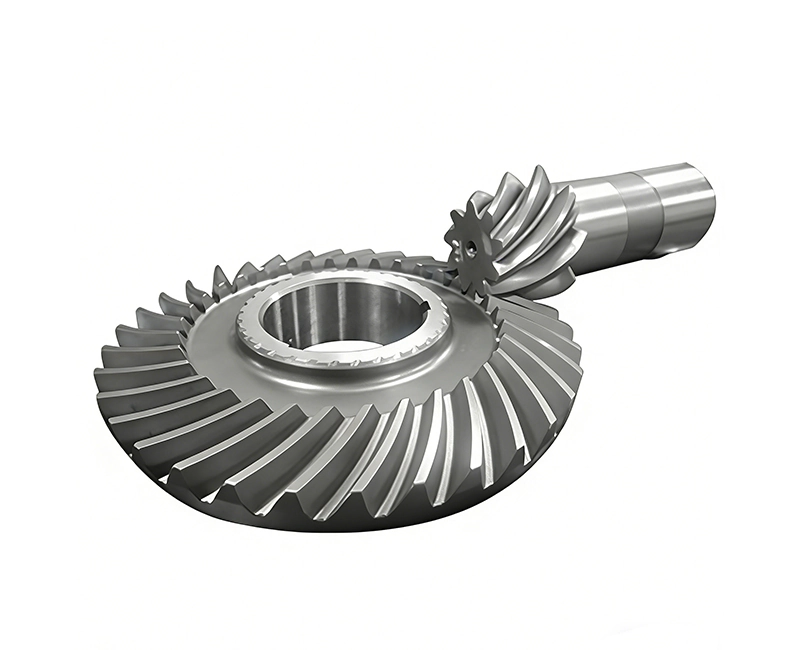

Spiral Bevel Gear for Right Angle Speed Reducer

Spiral bevel gear sets for right angle reducers built for torque Share ratio and mounting distance requirements then request a quote today!

Category: Spiral Bevel Gears Brand: Wenlio

Customization Options
Precision Grade	ISO 1328 grade 5-8 / AGMA 8-12
Gear teeth	Standard full depth
Pressure Angle(α)	20° / 22.5° / 25°
Module	0.5-12
Material	16MnCr5 / 20CrMnTi / SAE 8620 / 40Cr / Other
Heat Treatment	Carburized & Quenched / Q&T / Nitrided
Roughness Ra	Ra0.8 / 1.6 / 3.2 μm
Hardness	Tooth Surface HRC 52–62 / Core HRC 28–38
Process	Hot forging / Cold heading (Cold forging) / Gear shaping / Grinding

Description

Punctual Support

98% On-Time Delivery & 24/7 Tech Support

Quality Assurance

1-Year Warranty & Free Test Report

Manufacturing

IATF 16949:2016-Compliant Production

High Volume

Capacity: Up to 1,250,000 pcs per month

Specifications

Item	Specification	Tipical	Notes
Gear Type	Spiral Bevel Gear	—	—
Module (m)	1 – 5	2–4	As drawing
Pressure Angle	15 – 25°	20°	As drawing
Precision Grade	ISO 1328 6–8 / AGMA 8–10	ISO 6	As drawing
Materials	20CrMnTi / 20CrNiMo / 40Cr / 42CrMo / 45# / Others	20CrMnTi	As drawing
Heat Treatment	Carburized & Quenched / High-frequency Quenched / Nitrided	Carburized	As drawing
Hardness	Carburized & Quenched:Tooth HRC 58–62 High-frequency Quenched:HRC 45–55 Nitrided:Tooth HV 650–1300	Carburized & Quenched:Tooth HRC 58–62 High-frequency Quenched:HRC 48–52 Nitrided:Tooth HV 700–1100	As drawing
Surface Finish	Black Oxide Coating / Electroplating / Phosphate Coating / Passivation	Black Oxide Coating / Electroplating	As drawing
Process	Milling / Forging / Powder Metallurgy	Milling / Forging	As drawing
