Why Matched Bevel Gear Sets Reduce Pairing Risks
Jun
Introduction
A bevel gear may look correct on its own, but that does not always mean it will run correctly with its mating part. In many replacement or custom gear projects, the real risk is not only the shape of one gear. It is whether the gear and pinion can work together with the right contact pattern, backlash, mounting position, and load distribution.
This is why matched bevel gear sets are important. Instead of treating the gear and pinion as two unrelated parts, a matched set is reviewed, manufactured, and inspected as a working pair. For buyers, this can reduce the risk of noise, uneven wear, repeated adjustment, and early failure after installation.
What Are Matched Bevel Gear Sets?

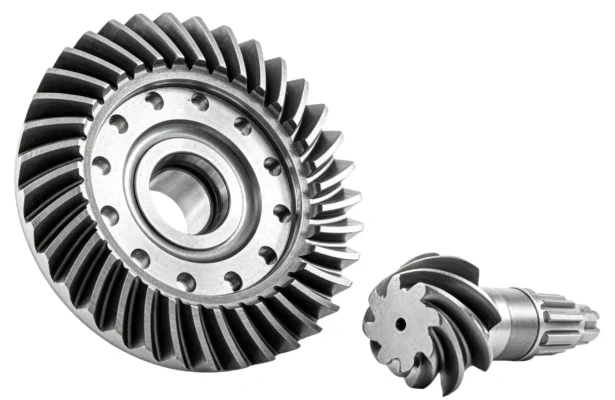

Matched bevel gear sets are paired bevel gears made and checked to work together in one transmission stage. The set usually includes a gear and a pinion, and the relationship between them matters as much as the dimensions of each individual part.
In a matched set, the supplier should pay attention to ratio, hand, tooth geometry, mounting references, backlash, contact pattern, heat treatment, and final inspection. These details help confirm whether the two parts can mesh in a stable way after assembly.
A single bevel gear can pass dimensional inspection and still create problems if the mating part is worn, modified, or not reviewed correctly. This is especially common in replacement projects where the buyer only sends one damaged part instead of the complete pair.
Why Single-Part Replacement Can Be Risky
Replacing only one bevel gear may seem faster and cheaper, but it is not always the safest choice. The remaining mating gear may already have wear, pitting, contact movement, or slight deformation. If a new gear is made only to match the drawing or the worn sample, the pair may not mesh as expected.
Another risk comes from missing assembly references. Bevel gears are sensitive to mounting position. Small changes in bore, face width, shaft angle, offset, or bearing location can move the contact pattern. When the contact area shifts too far toward the toe, heel, root, or top, the gear set may become noisy or wear faster.
For this reason, buyers should not decide between “one gear” and “one matched set” only by price. The better question is whether the remaining mating part is still a reliable reference.
When Buyers Should Choose a Matched Set
A matched set is usually worth considering when the gear pair affects final performance, not just basic rotation. This includes higher load applications, replacement projects with uncertain wear, right-angle transmission systems, compact gearboxes, or projects where noise and service life matter.
| Project Situation | Better Choice | Reason |
| Both gear and pinion are damaged or worn | Matched set | The original pair relationship is no longer reliable |
| Only one part failed, but the mating part shows wear | Usually matched set | A new part may not mesh well with a worn mate |
| New design or prototype project | Matched set | Pair behavior should be checked before production |
| Existing drawing clearly controls both parts | Matched set or drawing-based pair review | The supplier can confirm ratio, hand, backlash, and inspection |
| Low-speed, non-critical repair with a good mating part | Single part may be possible | Risk is lower if the remaining part is still accurate |
| Repeated noise or early wear after replacement | Matched set review | The root cause may be pair mismatch, not only one part |
This table should not replace engineering judgment, but it gives buyers a practical starting point. When the mating relationship is uncertain, a matched set review is usually safer than a simple part-by-part quote.

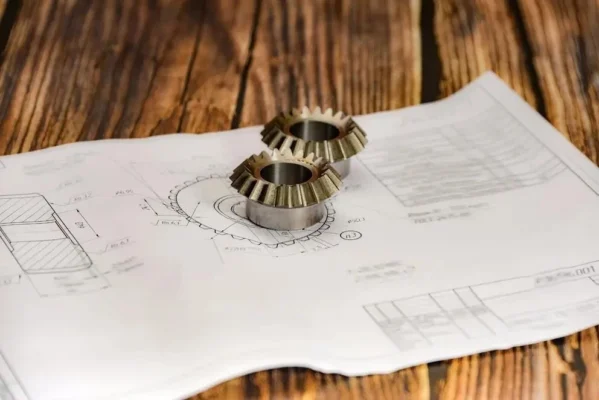

What Buyers Should Confirm Before RFQ
For a useful quotation, buyers should provide more than photos and outside dimensions. A bevel gear set depends on both part geometry and assembly condition. If key details are missing, the supplier may quote based on assumptions, and the final parts may require extra adjustment later.
| RFQ Detail | What to Provide | Why It Matters |
| Pair scope | Full set, gear only, pinion only, or sample pair | Defines the real project risk |

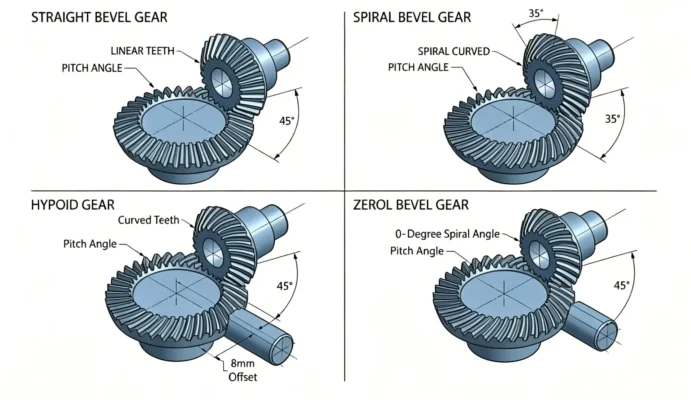

| Gear type | Straight, spiral, hypoid, zerol, miter, or crown bevel gear | Affects machining and inspection route |
| Ratio and tooth count | Gear and pinion tooth numbers | Confirms transmission relationship |
| Hand and orientation | Left hand, right hand, assembly direction | Prevents wrong-pair manufacturing |
| Mounting references | Bore, spline, shaft angle, face width, bearing position, offset if relevant | Affects contact pattern and fit |
| Material and heat treatment | Steel grade, hardness, case depth, or approved alternatives | Affects strength, wear life, and distortion control |
| Inspection requirements | Backlash, contact pattern, runout, tooth geometry, hardness, material report | Defines what approval should be based on |
| Application information | Load, speed, lubrication, machine type, failure symptoms | Helps judge whether a full matched set is needed |
If drawings are not available, buyers can still send the old pair, clear photos, key dimensions, application information, and failure details. For worn samples, the supplier should be careful because the sample may no longer represent the original tooth geometry.
How Inspection Helps Reduce Pairing Risk
Inspection for a matched bevel gear set should not stop at checking size. The supplier should also review the conditions that affect how the pair will run in service.
Backlash is one important item. It should be checked according to the assembly condition, not treated as a random number. Too little backlash can create heat and tight meshing. Too much backlash can cause impact, noise, and poor transmission feel.
Contact pattern is another key point. It shows where the teeth actually touch under the checking condition. A reasonable contact pattern gives buyers more confidence that the pair has been reviewed as a set, not only as two separate machined parts.
Runout, bore accuracy, face width, spline position, and mounting surfaces also matter. If the tooth geometry is acceptable but the mounting reference is unstable, the gear set may still be difficult to install correctly.
For heat-treated gears, hardness and case depth should also be confirmed when required. A set that meshes well at first can still fail early if the material route or surface condition is not suitable for the application.
Common Mistakes Buyers Should Avoid
One common mistake is sending only one damaged bevel gear and asking for the same part without explaining the condition of the mating gear. This may work in some simple repairs, but it can be risky when the pair relationship is critical.
Another mistake is asking for “high precision” without defining the inspection target. Precision should be connected to drawing requirements, contact pattern, backlash, runout, material, heat treatment, and final application.
A third mistake is comparing quotations without checking whether suppliers are quoting the same scope. One supplier may quote a single gear. Another may include pair review, contact checking, heat treatment control, and inspection reports. The two prices are not directly comparable if the technical scope is different.
Buyers should also avoid assuming that a worn sample is always a perfect reference. In replacement projects, the worn part may show the failure result, not the original design condition.
Why Choose Wenlio

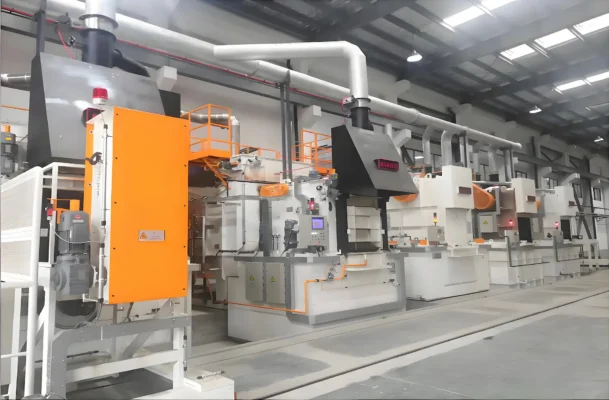

At Wenlio Gear, we treat matched bevel gear sets as a full engineering project rather than a simple part order. Our published capabilities center on bevel gears, including straight bevel, spiral bevel, hypoid, zerol, crown, and miter categories, and we support projects from drawing review and DFM feedback through prototype validation, heat treatment, grinding, inspection, and stable repeat production.
That matters because matched sets ask more from the supplier than basic machining alone. They require attention to pair logic, controlled meshing behavior, inspection discipline, and consistency between sample approval and production release. Our public quality presentation also highlights calibrated in-house measurement, certified third-party lab support when needed, prototype runs, batch manufacturing, and quality levels up to project-dependent precision levels in some projects.
FAQ
Q1: What is the most important thing to check in a matched bevel gear set?
The most important point is whether the pair is being reviewed as a working set, not just as two separate parts.
Q2: Can I replace only one part of a matched bevel set?
Sometimes, but not always. The risk depends on the condition of the remaining mating part and how critical the pair relationship is in service.
Q3: Why are spiral bevel gear sets often discussed as matched sets?
Because stable meshing, lower vibration, and controlled contact behavior depend on how the pair works together, not only on the size of one gear. Wenlio describes spiral bevel gears in exactly those matched-set terms.
Q4: What reports should buyers ask for before shipment?
For many matched bevel gear projects, buyers should at least confirm material evidence, tooth geometry reports, hardness data, and dimensional inspection results.
Q5: Does prototype capability matter if I plan a production order only?
Yes. Prototype discipline usually shows how the supplier handles drawing review, pair logic, inspection, and revision before the production risk becomes expensive.
Conclusion
Matched bevel gear sets should be quoted, reviewed, and approved as a working transmission pair, not as two isolated parts. The better the buyer defines the pair requirement, gear type, ratio, mounting references, material route, heat treatment, and inspection target, the more useful the quotation and the more reliable the final set will be.
For this type of project, the real goal is not only to make two gears that fit a drawing. It is to deliver a pair that can mesh, carry load, and stay stable in service. If you are preparing a matched bevel gear RFQ, replacing an existing set, or trying to decide whether a single-part replacement is safe, Contact Us with your drawing, sample pair, or application details so the review can start from the right information.
